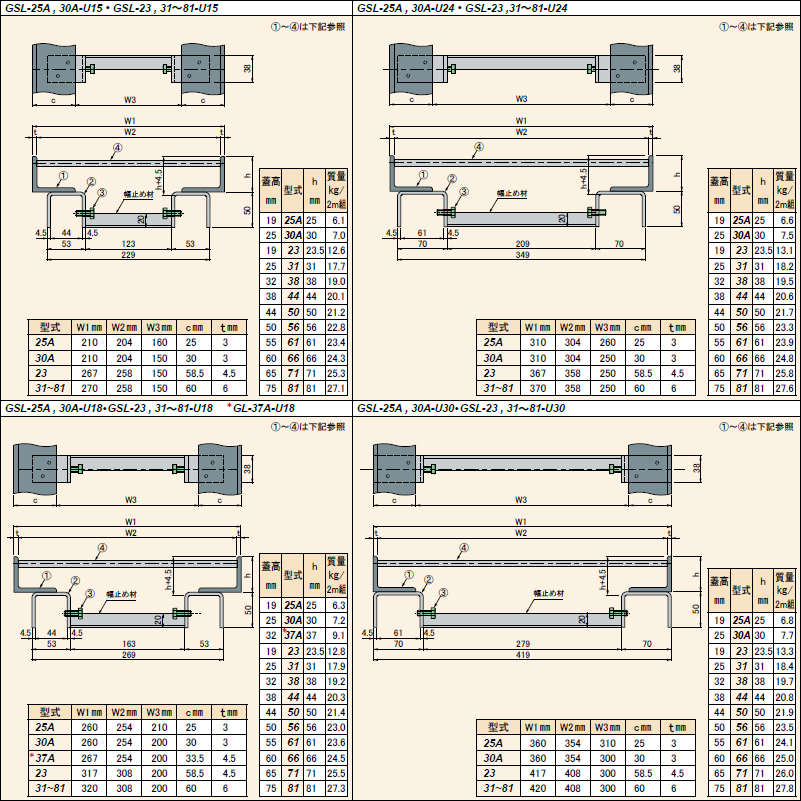

スチール製U字溝用受枠（幅止めスペーサー付）溶融亜鉛めっき
| みぞ幅 |
枠外幅
|
蓋高さ
|
型 式 |
共通承認図 |
単品承認図 |
施工資料 |
適用機種 |
| 150 |
210 |
19 |
GSL-25A-U15 |
|
|
|
|
| 25 |
GSL-30A-U15 |
|
|
|
| 267 |
19 |
GSL-23-U15 |
|
|
|
| 270 |
25 |
GSL-31-U15 |
|
|
|
| 32 |
GSL-38-U15 |
|
|
|
| 38 |
GSL-44-U15 |
|
|
|
| 44 |
GSL-50-U15 |
|
|
|
| 50 |
GSL-56-U15 |
|
|
|
| 55 |
GSL-61-U15 |
|
|
|
| 60 |
GSL-66-U15 |
|
|
|
| 65 |
GSL-71-U15 |
|
|
|
| 75 |
GSL-81-U15 |
|
|
|
| 180 |
260 |
19 |
GSL-25A-U18 |
|
|
|
| 25 |
GSL-30A-U18 |
|
|
|
| 267 |
32 |
GL-37A-U18 |
|
|
|
| 317 |
19 |
GSL-23-U18 |
|
|
|
| 320 |
25 |
GSL-31-U18 |
|
|
|
| 32 |
GSL-38-U18 |
|
|
|
| 38 |
GSL-44-U18 |
|
|
|
| 44 |
GSL-50-U18 |
|
|
|
| 50 |
GSL-56-U18 |
|
|
|
| 55 |
GSL-61-U18 |
|
|
|
| 60 |
GSL-66-U18 |
|
|
|
| 65 |
GSL-71-U18 |
|
|
|
| 75 |
GSL-81-U18 |
|
|
|
| 240 |
310 |
19 |
GSL-25A-U24 |
|
|
|
| 25 |
GSL-30A-U24 |
|
|
|
| 367 |
19 |
GSL-23-U24 |
|
|
|
| 370 |
25 |
GSL-31-U24 |
|
|
|
| 32 |
GSL-38-U24 |
|
|
|
| 38 |
GSL-44-U24 |
|
|
|
| 44 |
GSL-50-U24 |
|
|
|
| 50 |
GSL-56-U24 |
|
|
|
| 55 |
GSL-61-U24 |
|
|
|
| 60 |
GSL-66-U24 |
|
|
|
| 65 |
GSL-71-U24 |
|
|
|
| 75 |
GSL-81-U24 |
|
|
|
| 300 |
360 |
19 |
GSL-25A-U30 |
|
|
|
| 25 |
GSL-30A-U30 |
|
|
|
| 417 |
19 |
GSL-23-U30 |
|
|
|
| 420 |
25 |
GSL-31-U30 |
|
|
|
| 32 |
GSL-38-U30 |
|
|
|
| 38 |
GSL-44-U30 |
|
|
|
| 44 |
GSL-50-U30 |
|
|
|
| 50 |
GSL-56-U30 |
|
|
|
| 55 |
GSL-61-U30 |
|
|
|
| 60 |
GSL-66-U30 |
|
|
|
| 65 |
GSL-71-U30 |
|
|
|
| 75 |
GSL-81-U30 |
|
|
|
